| File | Size | |
|---|---|---|
| Datasheet | 133.88KB | Download |
- Premium Super-Bright 350 Lumens /ft, IP68 24V Waterproof Led flex, High density 60LED/M, 2835 LED,
- Suitable for building features, stair/bar edging, floor marking, signage, marine and outdoor lighting. Now with 3M tape for easy installation
- Warm-White 3000K LED Flex
- Premium LED CHIP at 20 lumens per CHIP, plus Silicon not Epoxy Fill - Greater Luminance and durable product.
- Price shown is per 16.4ft / 5M reel
- No UV or IR radiation, low heat, Premium 2 0z PCB for low voltage drop, lower temperature, longer life
- Requires 24V DC constant voltage LED driver
- Dimmable (with dimmable driver, i.e Eversale 48W EV-24V-2000-60D)
- For runs over 16ft / 5M individual lengths should be connected in parallel (Lengths can be joined, but LED start to fade after ~2 Reels)
- Low power consumption - 2.4W/m
- Size: 4.3mm H x 12.6mm W x 5000mm L (Strip inside is 10mm wide)
- Cut-point every 6 LED, every 100mm
- IP68 accessories and connector kits available
- 18 LED/ft (60 LED/m), Bend Radius 28mm / 1.1"
- Life: 35,000 hours
- 0.4Kg / 0.88lb
- 1 year warranty
| Voltage / Power | |
| Input Voltage | 24V DC |
| Constant Current / Voltage | Constant Voltage |
| Wattage | 40W |
| General | |
| Lumens | 300/ft |
| Bulb Color | Warm White |
| Color Temperature K | 3000K |
| LED Qty | 300 |
| Dimmable | Yes |
| IP Rated | IP68 No Dust / Water beyond 3.3ft |
| submersible | 3.3 ft |
| Wiring (Series / Parallel) | Parallel |
| Location | Outdoor |
| Profile | Flat |
| Fixing | 3M-Tape |
| Max Length | 8M |
| Power / ft | 2.44W |
| Dimensions | |
| Length | 16.4' |
| Width | 0.5" |
| Height | 0.17" |
| Warranty | |
| 1 yr. | |
| Life (hrs) | 50000 |

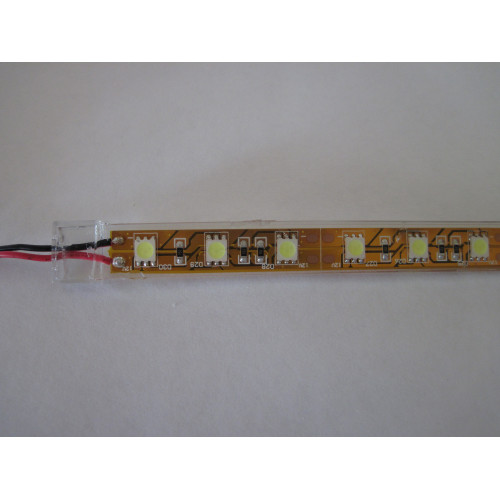

LED 24V Flex Strip Super Bright Warm White Waterproof IP68
- Brand: illuminous
- Product Code: EV-ST-WP-WW-24V
- Availability: In Stock
-
$69.99
