- G4, Rectangle, 6-SMD 5050 LED, Warm White, 12V AC/DC Lamp Bulb
- Perfect to replace Halogen G4, Landscape, Automotive, RV, Boats, Spots & Pendants
- Color: Warm White 2800-3000K, 80 Lumens, 1.2W
- No UV or IR radiation, low heat, highly efficient operation and low operating costs
- Base: G4, enables fitting in any G4 luminaries
- Non-dimmable
- Size: 1.01” L x 0.64” W x 0.33” D (25.7 L x 16.25 W x 8.44 D) (not including pin length), Pins 10.4mm
- Light source: 6 x 5050 LED, 180 degree Viewing Angle
- An exceptionally long lamp life of up to 50,000 hours makes lamps ideal for inaccessible locations
- 1 year warranty
| Bulb Type | |
| G4 Capsule | |
| Voltage / Power | |
| Input Voltage | 12V AC/DC |
| Constant Current / Voltage | Constant Voltage |
| Wattage | 1.2W |
| General | |
| Lumens | 80 |
| Bulb Color | Warm White |
| Bulb Included | Yes |
| Color Temperature K | 3000K |
| LED Qty | 6 |
| Dimmable | No |
| IP Rated | No |
| submersible | No |
| Angle | 120 |
| Dimensions | |
| Length | 1.01" |
| Width | 0.87" |
| Height | 0.33" |
| Warranty | |
| 1 yr. | |
| Life (hrs) | 30000 |

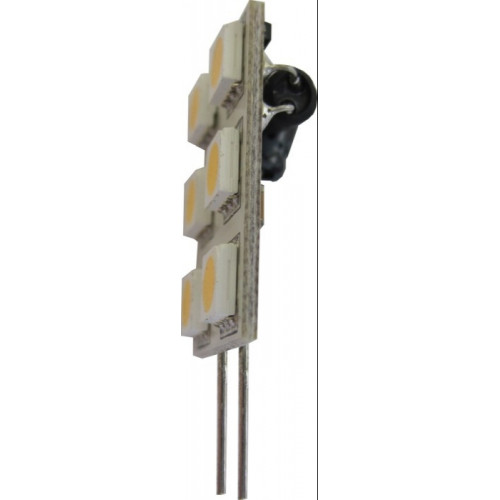

LED G4 6 x 5050 Rectangle Uni-Directional Lamp Bulb 12V
- Brand: illuminous
- Product Code: EV-G4-6-RECT
- Availability: In Stock
-
$2.49
